Magadh can offer Electrolytic Cleaning Lines (ECL) for a strip width up to 1650 mm and strip thickness of 0.12 to 3.2 mm. ECL is used for the effective removal of iron fines, rolling oil, or grease remaining on the surface of cold rolled steel strip which may range up to 450 mg/m² of oil or grease and up to 160 mg/m² of iron fines.
Technology employed is spraying, brushing, and electro cleaning by high current density followed by stage-wise cascade rinsing.
The ECL can have efficiency of up to 97.5% for the oil and in excess of 95% for the iron fines, depending on the quality of strip from the rolling operation. This is due to the combination of different processes to clean the strip: spray or dip cleaning, brushes, electro-cleaning section followed by a rinse built into different stages.

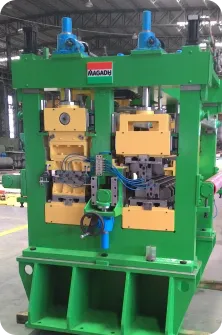

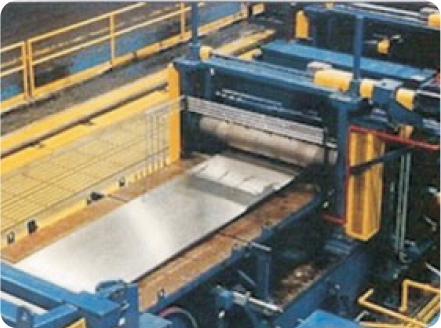

Magadh can offer Tension Leveling lines in 4-Hi and 6-Hi configuration for strip width up to 1650 mm, process speed up to 600 MPM for strip thickness of 2.5 mm to 0.12 mm.
The strip defects that can be handled are:
